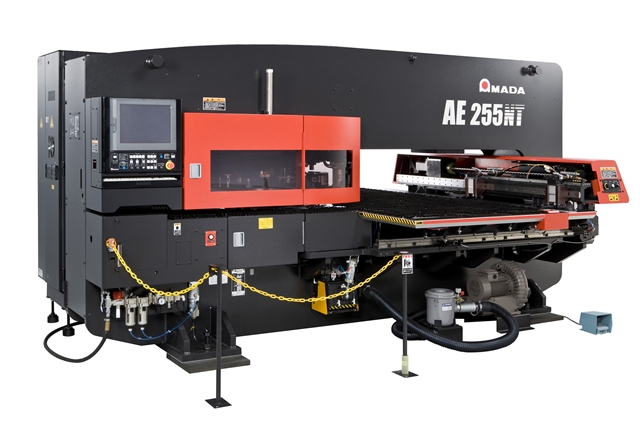

Amada AE255NT
Model : Amada AE255NT
| Specifications | |||
| Model | AE255NT | ||
| Press Capacity | kN {tonf} | 200(20) | |
| Sheet Size | 1270mm x 2500mm | ||
| Axis speed | X:80 Y:60 | ||
| Max Sheet Thickness | 3.2 mm (Brush Table ) 6.4mm (High density brush table) |
||
| Punching Accuracy | ±0.1mm and ±0.07mm (FA mode) | ||
| Hit Rate max | hpm |
X Axis 350, Y Axis 280 (at 25.4mm pitch and 5mm stroke) for Punching Pattern 900(Marking Pattern); |
|
| Max Feed Rate m/min | X:80 Y:60 |
||
